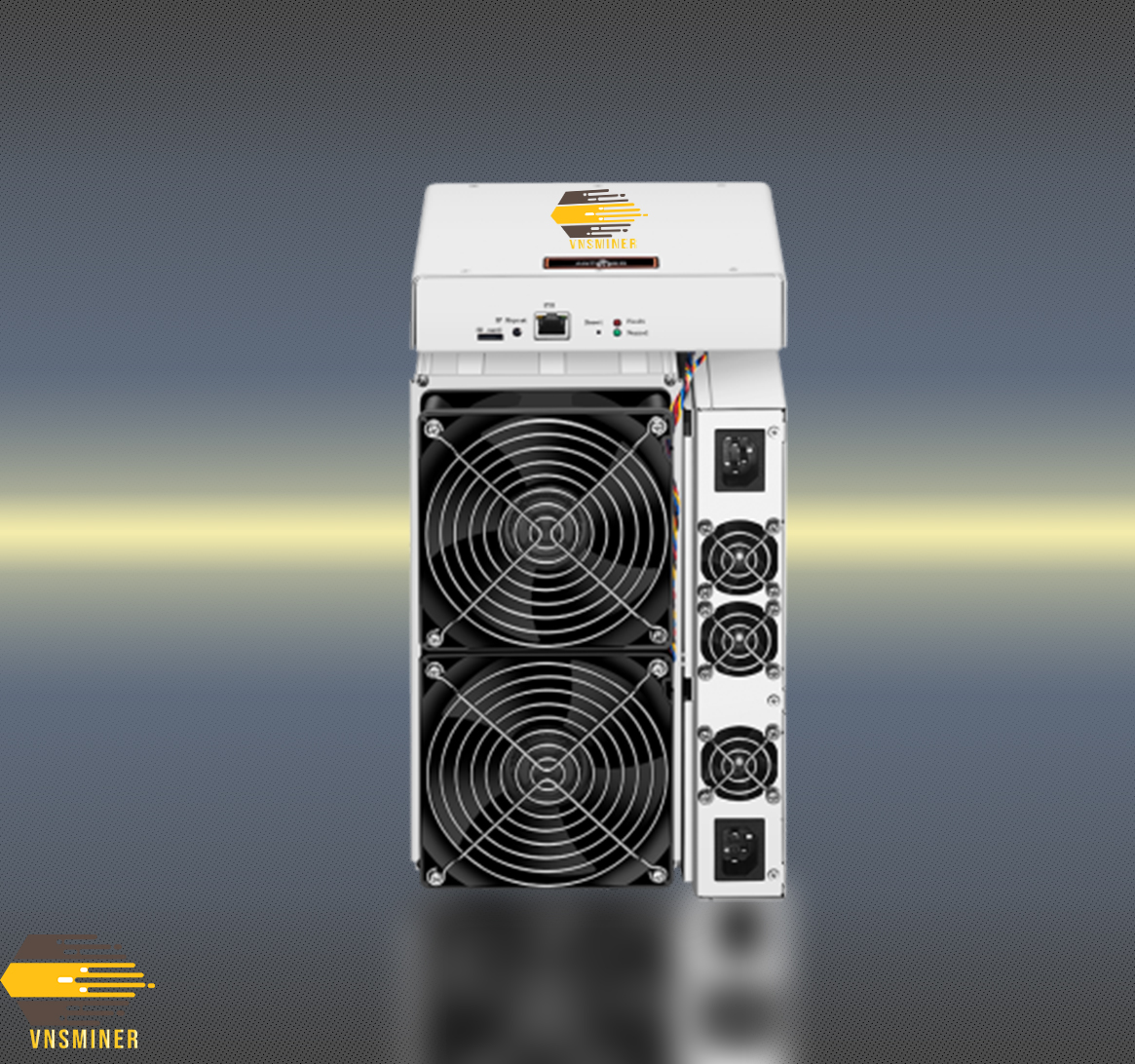

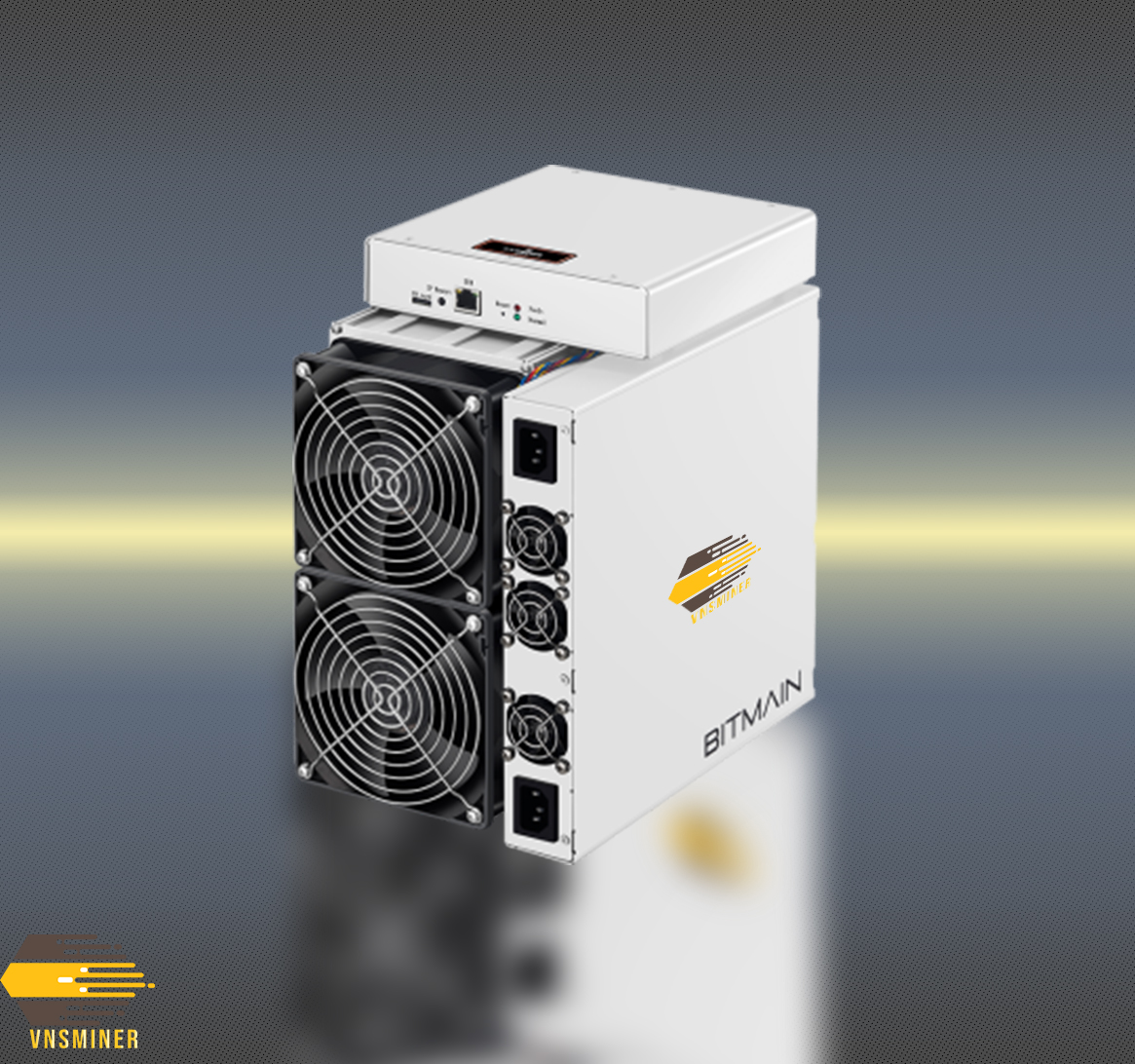

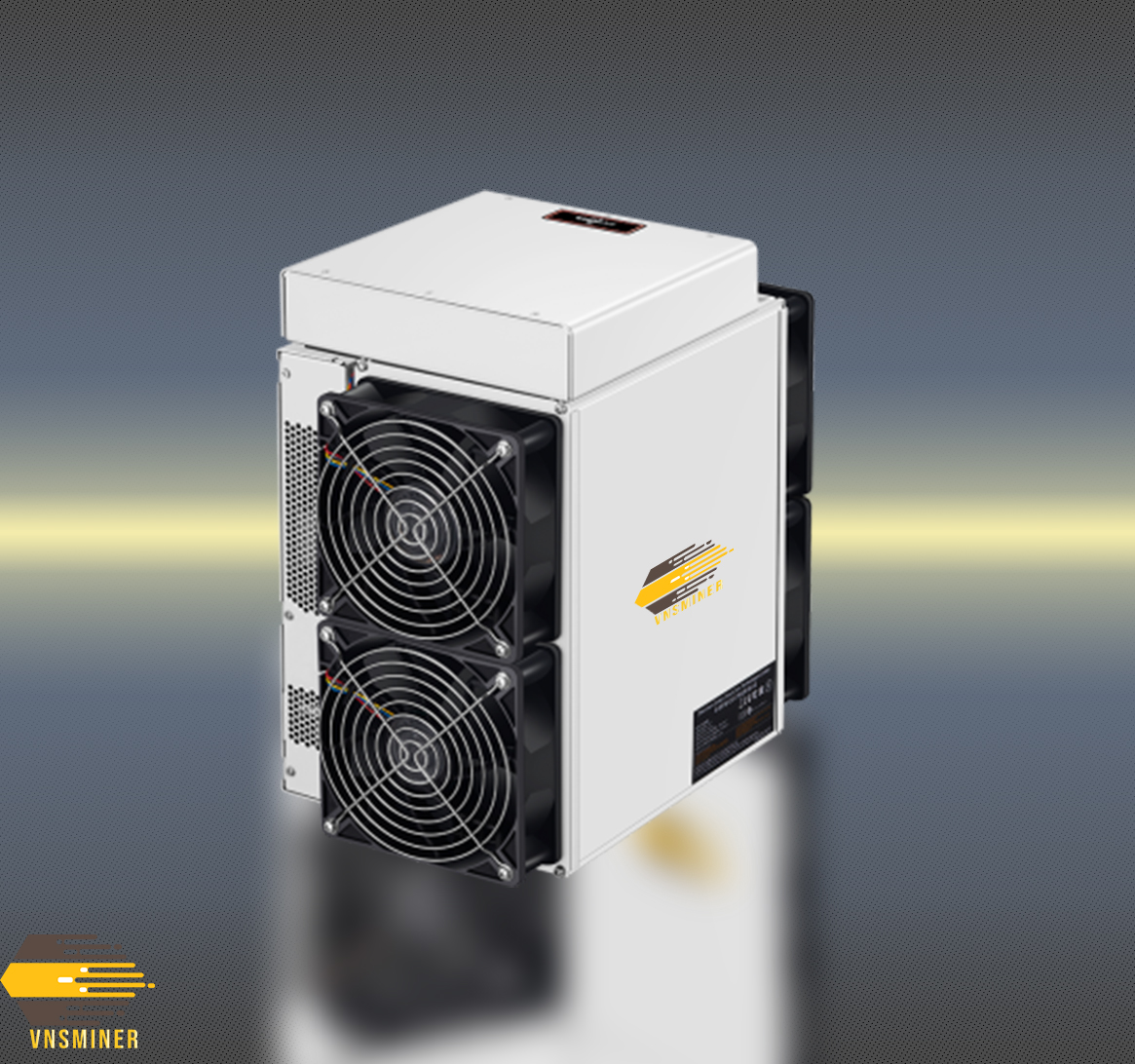

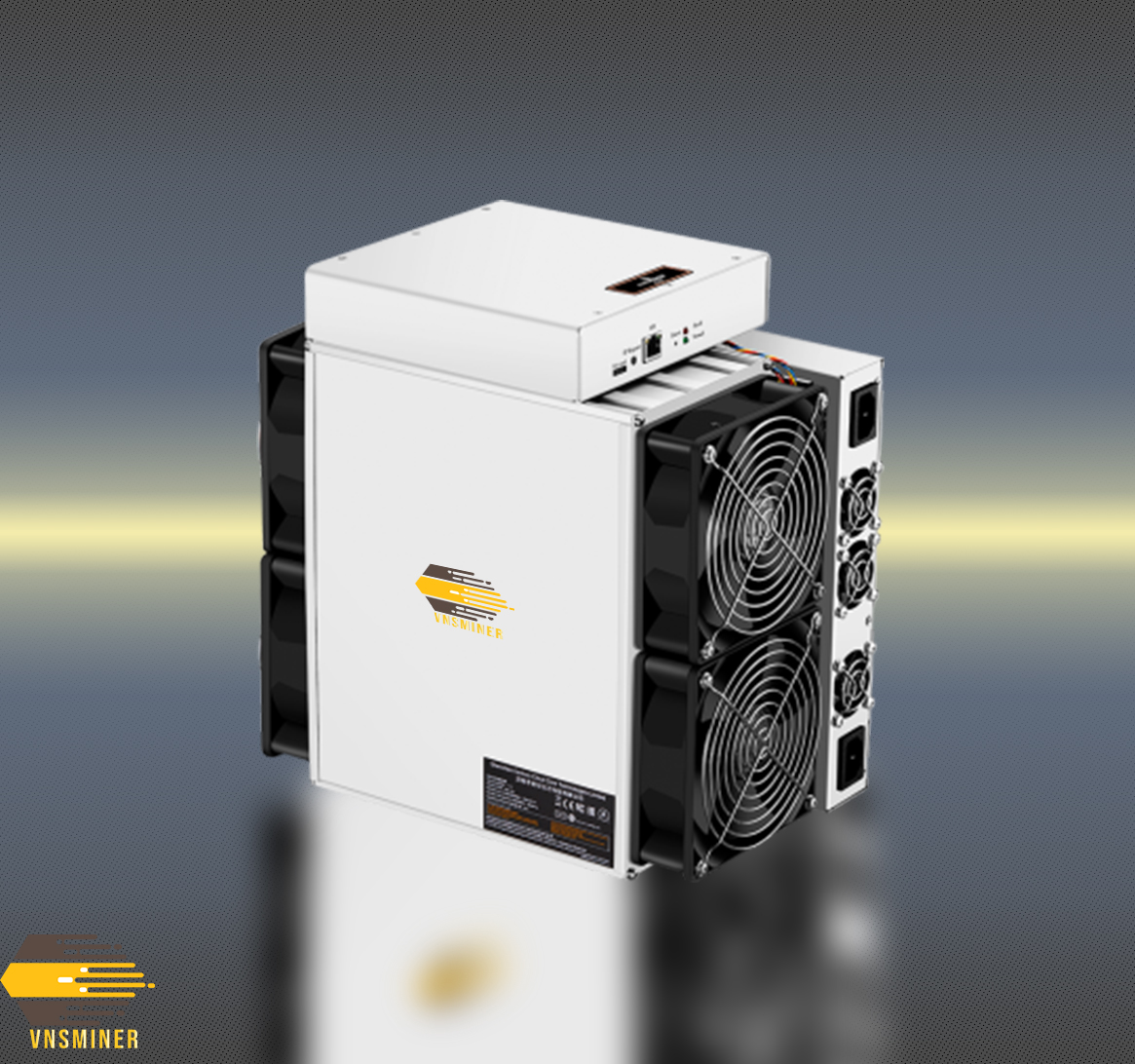

َAntminer S17-53TH/s
Description:
Hashrate: 53TH/s | Weight: 11kg
Hashrate: 53TH/s | Weight: 11kg
Specifications:
| Product Glance | Value | |||
|---|---|---|---|---|
| Low Power Normal | ||||
| Version Model No. Crypto Algorithm/Coins |
S17 240-Aa SHA256/BTC/BCH |
|||
| Hash rate, TH/s | 35~50.00 53.00 | |||
| Reference power on wall, Watt | 1470~2100 2385 | |||
| Reference power efficiency on wall @25°C, J/TH | 42.00 45.00 | |||
| Detailed Characteristics | Value | |||
| Min | Type | Max | ||
| Hash rate & Power | ||||
| Hash rate, TH/s | Low Power | 35~50.00 | +3% (1-1) | |
| Normal | 53.00 | 55.95 | ||
| Power efficiency on wall @25°C, J/TH | Low Power | 42.00 | 46.20 | |
| Normal | 45.00 | 49.50 | ||
| Power efficiency on wall @40°C, J/TH | Low Power | 43.81 | 48.19 | |
| Normal | 46.47 | 51.11 | ||
| Power on wall, Watt (1-2) | Low Power | 1470~2100 | 2482 | |
| Normal | 2385 | 2860 | ||
| Power supply AC input voltage, Volt (1-3) | 200.00 | 220 | 240 | |
| Power supply AC input current, Amp(1-4) | Low Power | 6.68~9.55 | 12.41 | |
| Normal | 10.84 | 14.30 | ||
| Power supply Input AC Frequency Range, Hz | 47.00 | 50 | 63 | |
| Hardware Configuration | ||||
| Quantity of hash chips | 144 | |||
| Quantity of hash board | 3 | |||
| Networking connection mode | RJ45 Ethernet 10/100M | |||
| Miner Size (Length*Width*Height, w/o package),mm(2-1) | 298.2*178.0*296.6 | Environment Requirements | ||
| Net weight, kg (2-2) | 9.5 | |||
| Noise, dBA @25°C (2-3) | 82 | |||
| Environment Requirements | ||||
| Operation temperature,°C | 0 | 25 | 40 | |
| Storage temperature,°C | -20 | 25 | 70 | |
| Operation humidity, RH(no condensation) | 10 | 90% | ||
